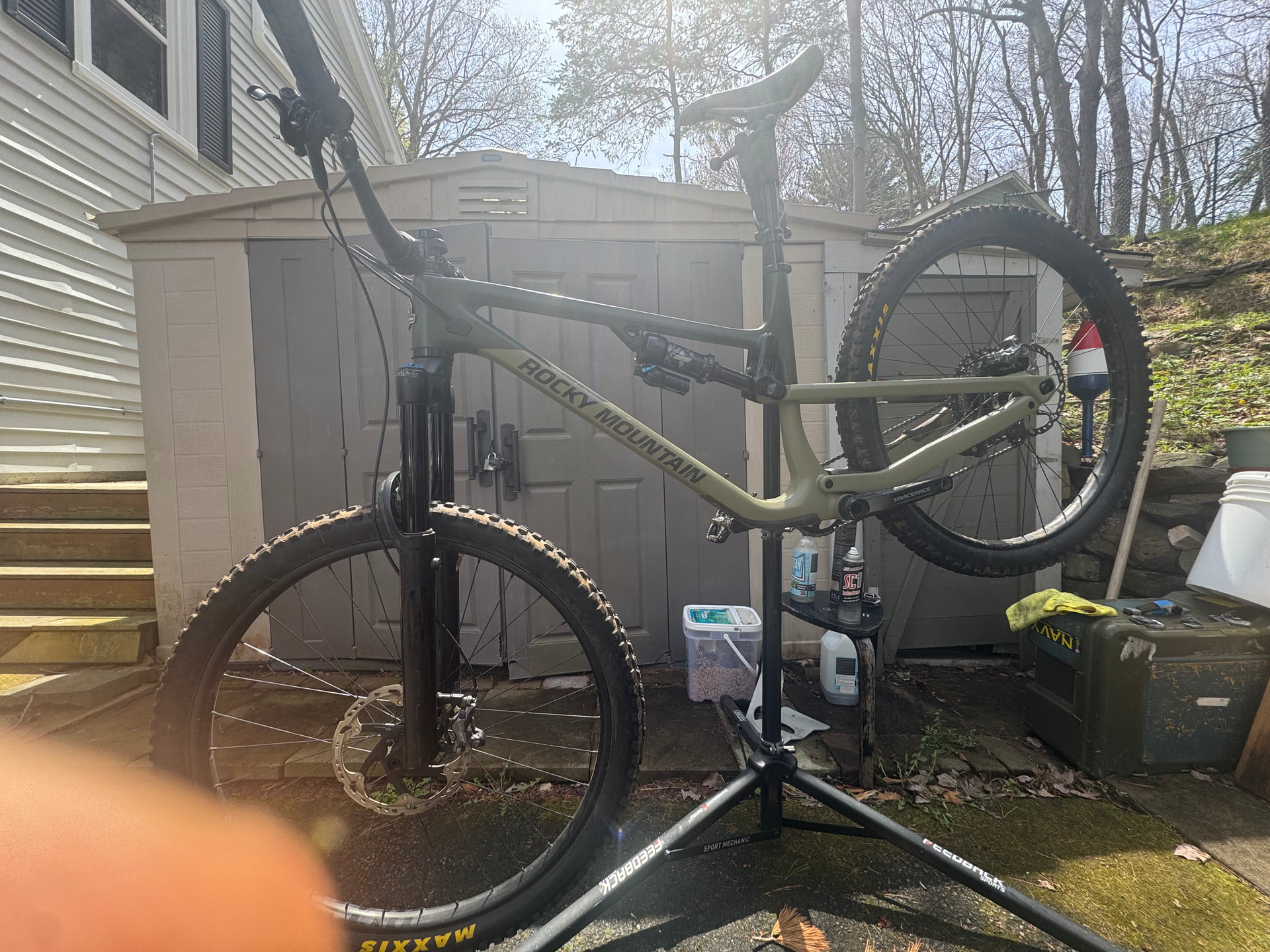

2022 Rocky Mountain Altitude Carbon 50 (C50):
Frameset & Suspension**
- Frame: SMOOTHWALL™ Carbon, full sealed cartridge bearings, internal cable routing, 2-bolt ISCG05 tabs, RIDE-9™ adjustable geometry, 2-position rear axle flip-chip (allows +/- 11mm chainstay adjustment).SMOOTHWALL™ Carbon rear triangle.

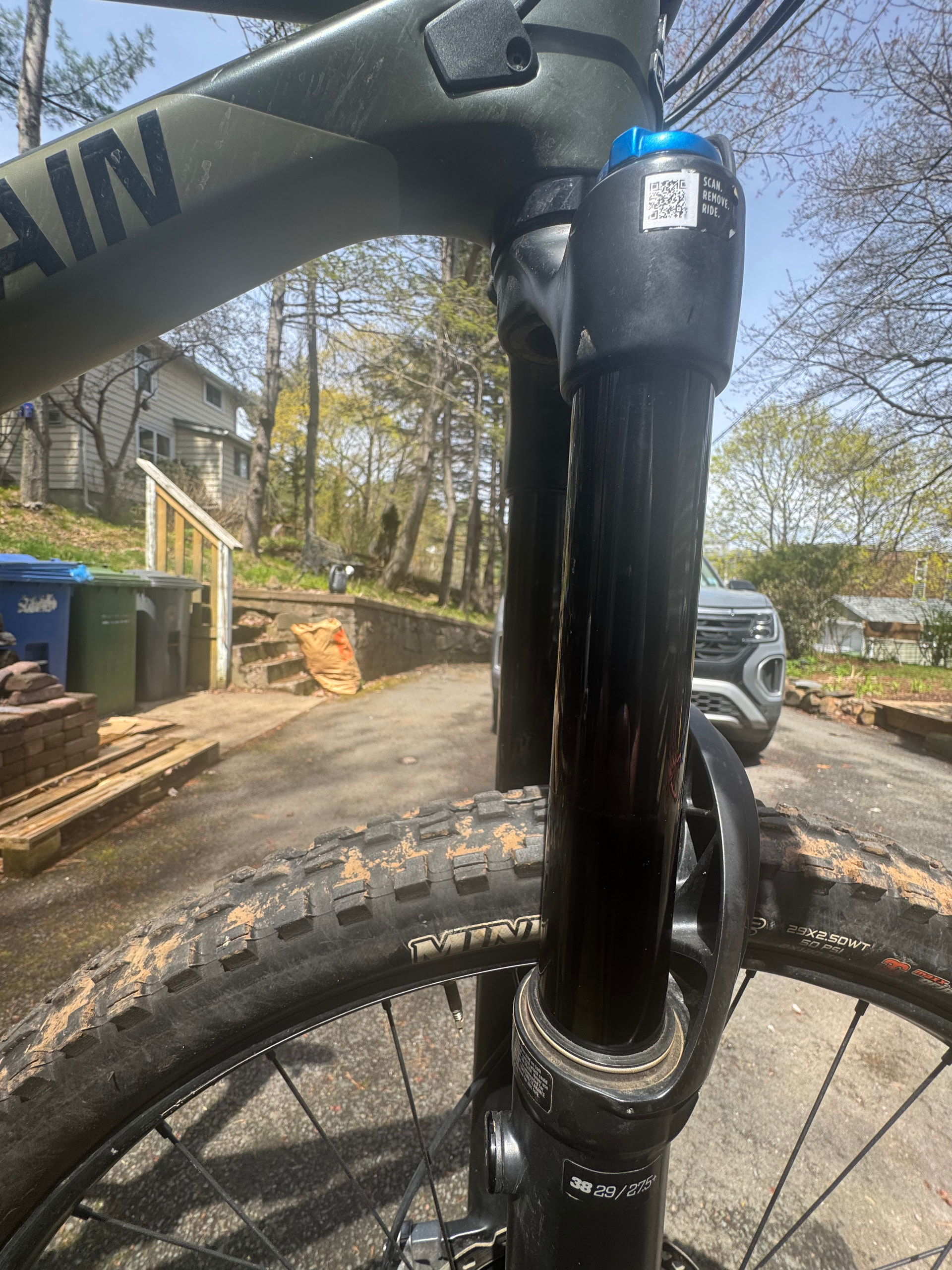

- Fork: Fox 38 Float EVOL GRIP Performance Series, 170mm travel
- Offset: 27.5" = 37mm | 29" = 44mm

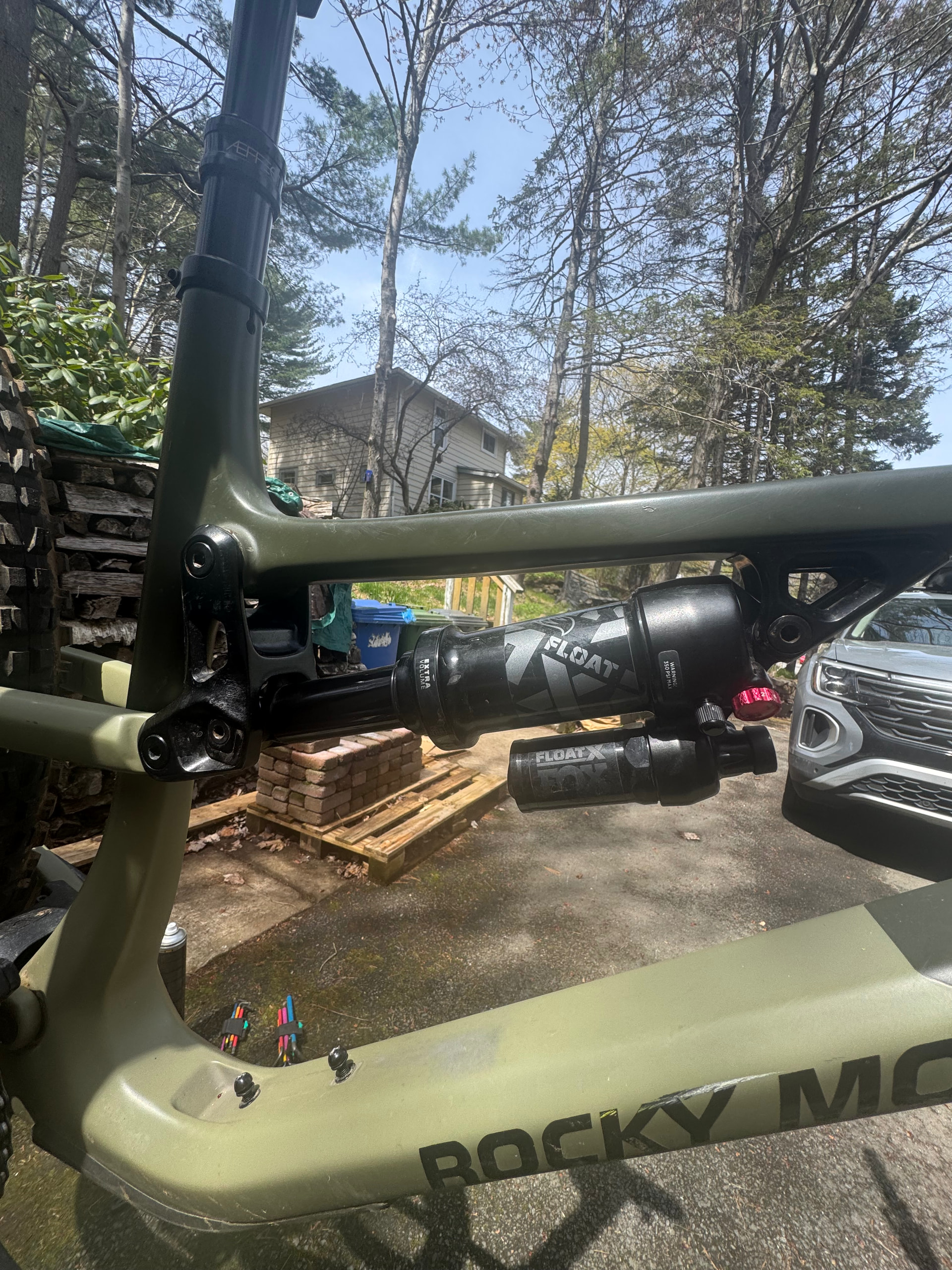

- Shock: Fox Float X Performance, sealed bearing eyelet, 25x8mm front hardware.
- Size: Size SM = 210x55mm (160mm rear travel) | Sizes MD–XL = 230x60mm (160mm rear travel).
Drivetrain
- Shifter: Shimano SLX M7100, 12-speed

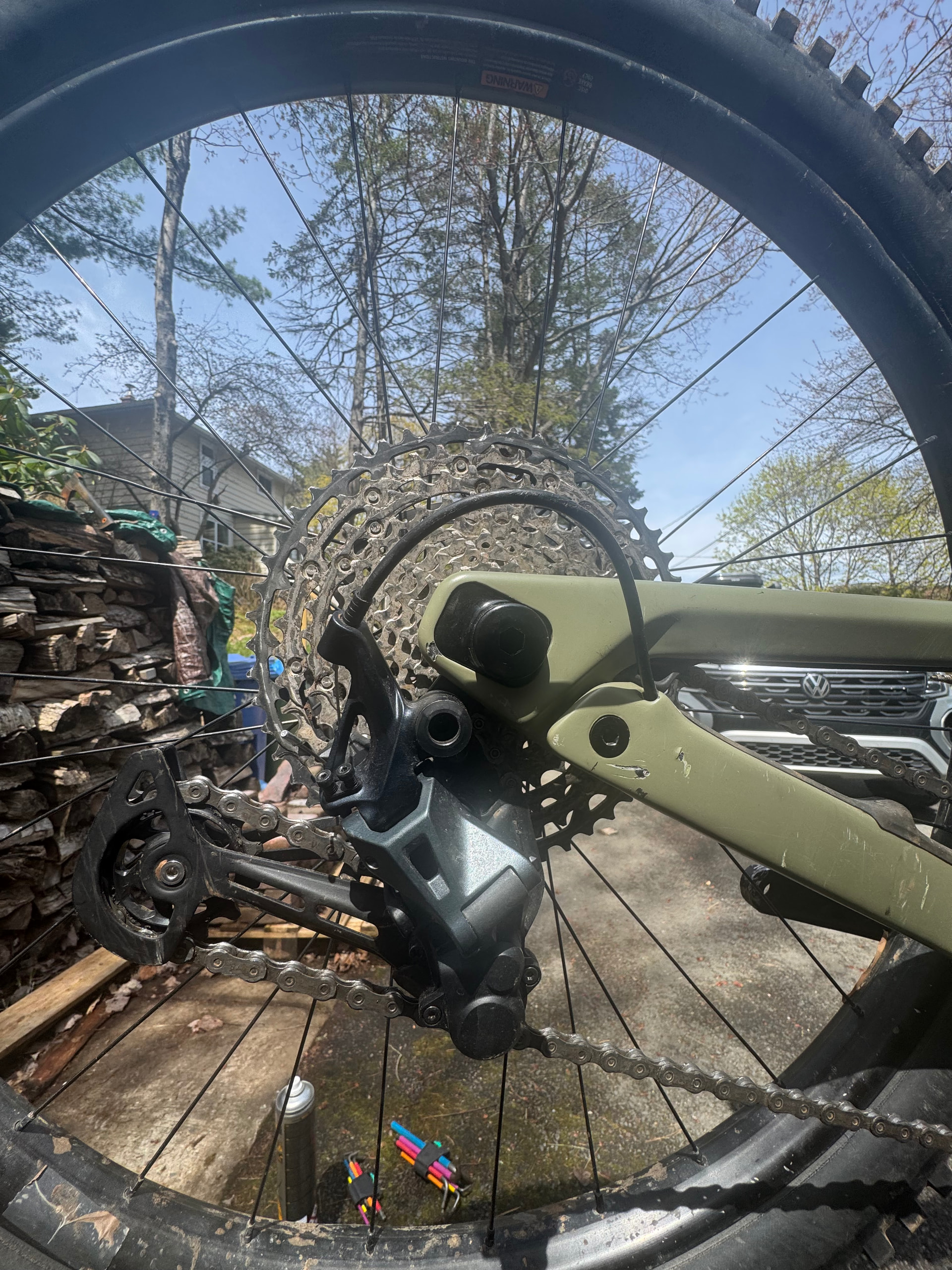

- Rear Derailleur: Shimano XT M8100, 12-speed
- Cranks & Chainring: Race Face Aeffect Cinch, 32T steel ring, 24mm spindle, 170mm crank length
- Bottom Bracket: FSA BB92, Press-Fit (24mm spindle compatible)
- Cassette: Shimano SLX M7100, 10-51T
- Chain: Shimano M7100
Brakes

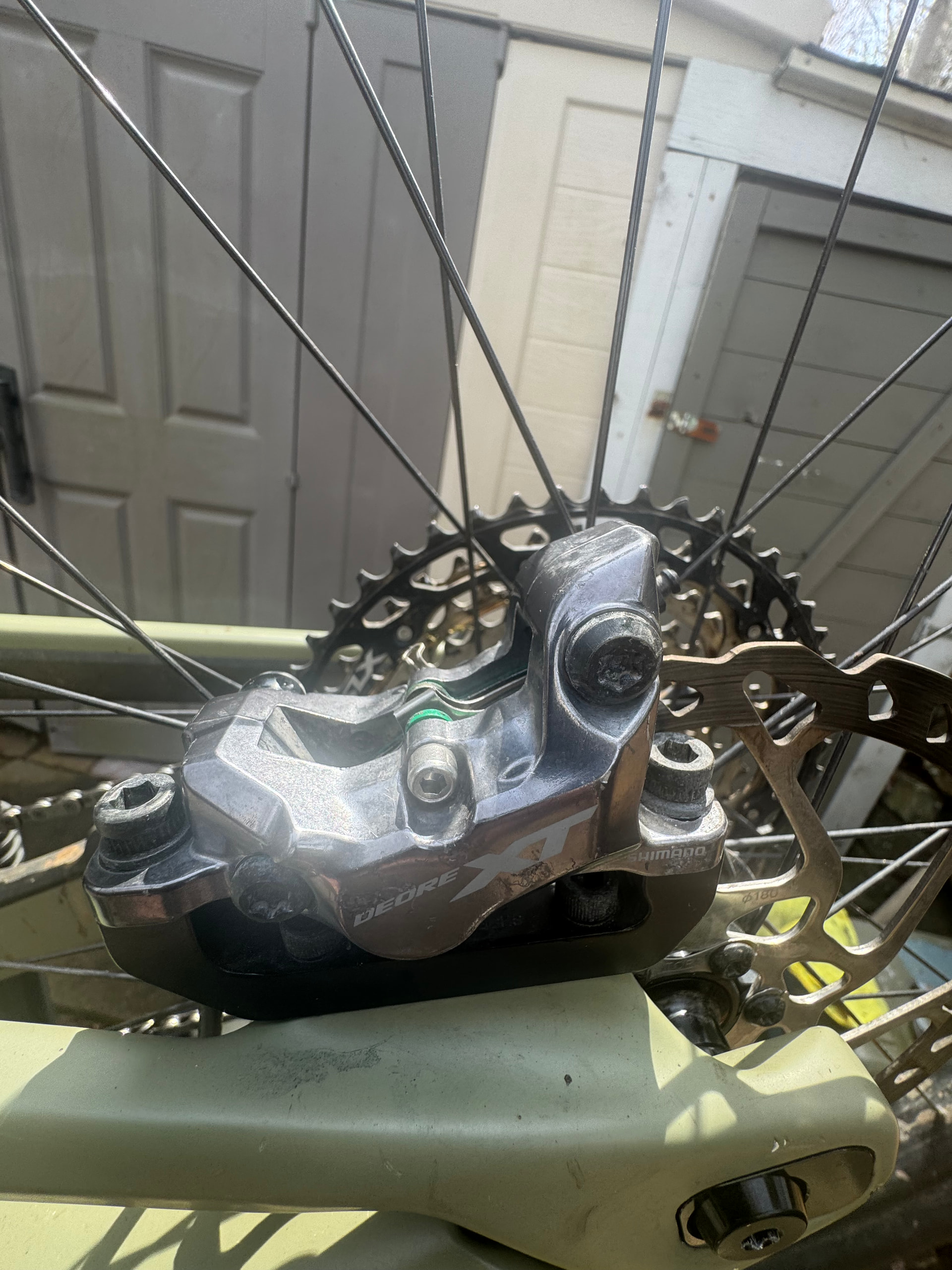

- Brakeset: Shimano XT Trail M8120, 4-piston hydraulic
- Brake Pads: Metal pads with fins
- Rotors: Shimano RT66 / Front: 203mm | Rear: 180mm
Wheels & Tires
- Rims: WTB ST Light i30 TCS 2.0, 32-hole, tubeless-ready (tape & valves included)
- Front Hub: Rocky Mountain Sealed Boost 15mm (15x110mm)
- Rear Hub: Race Face Trace Boost 148mm (12x148mm), Micro Spline driver, 10° engagement
- Spokes: DT Swiss Champion 2.0

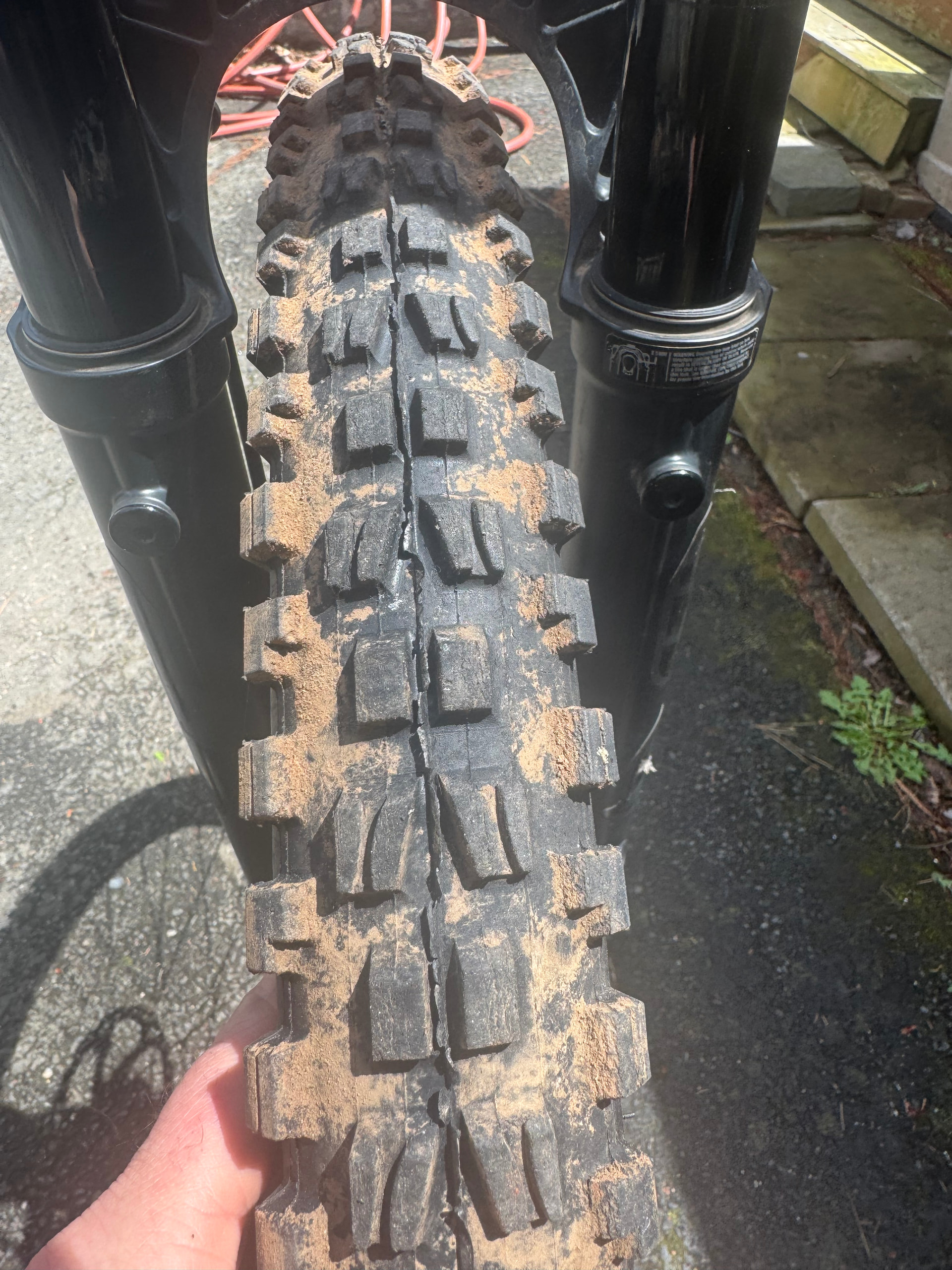

- Front Tire: Maxxis Assegai 2.5 WT, 3C MaxxGrip, EXO+, Tubeless Ready

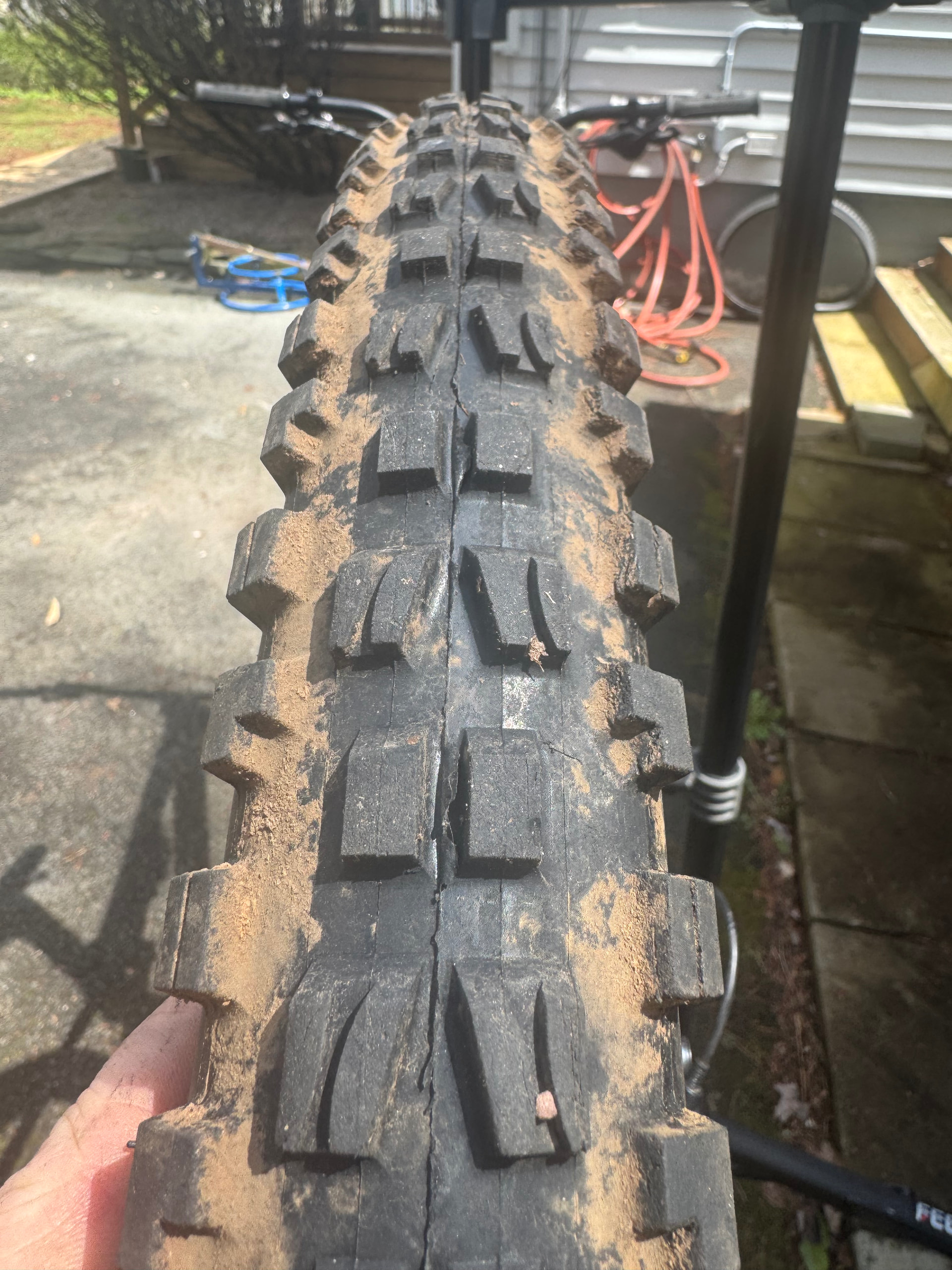

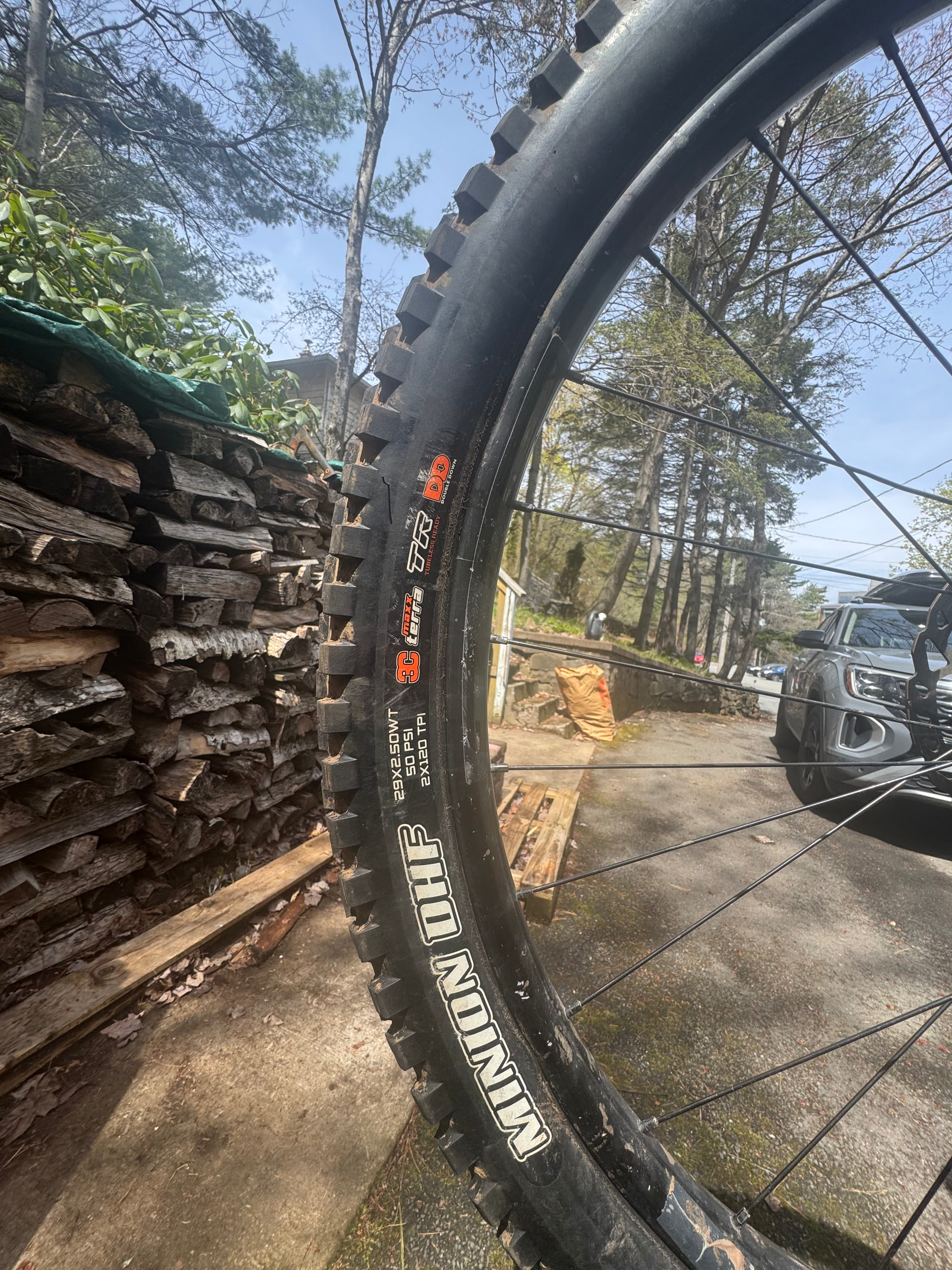

- Rear Tire: Maxxis Minion DHR II 2.4 WT, 3C MaxxTerra, EXO+, Tubeless Ready
Cockpit & Seating
- Headset: FSA Orbit NO.57E, sealed stainless bearings (36°x45°), 1.5" crown race
- Stem: Rocky Mountain 35 AM, 5° rise, 40mm length (all sizes)

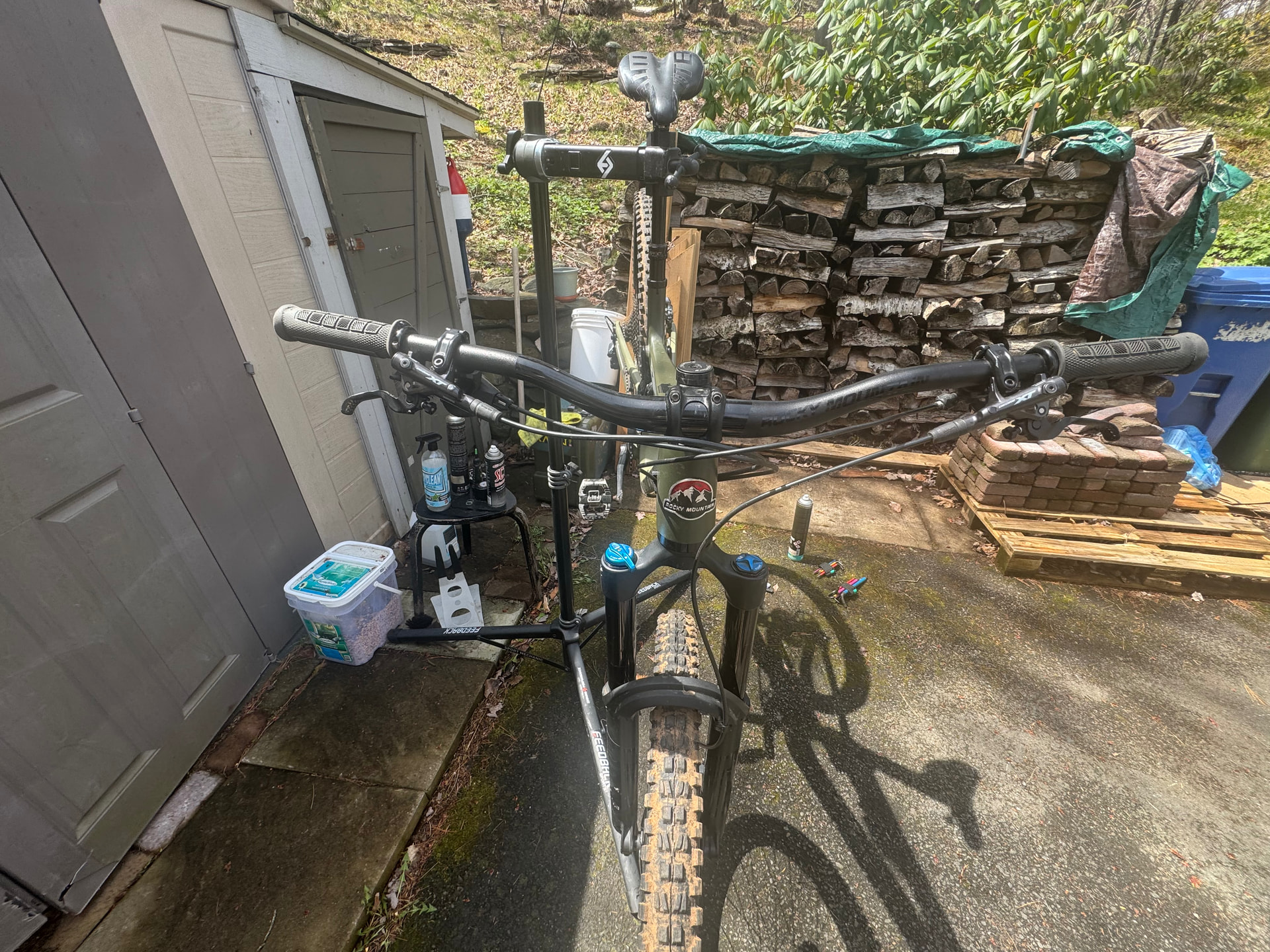

- Handlebar: Rocky Mountain AM, 780mm width, 38mm rise, 9° backsweep, 5° upsweep, 35mm clamp
- Grips: ODI Elite Pro Lock-On
- Seatpost: Race Face Aeffect R Dropper (30.9mm) with Shimano MT500 remote lever
- Travel: SM = 125mm | MD = 150mm | LG–XL = 175mm
- Saddle: WTB Volt Race 142
